[Animated Tutorial] How to Change Bandwidth for Hot Backup Copy

SUMMARY

Steps to adjust the total available bandwidth and set bandwidth schedules for hot backup copy operations

ISSUE

Bandwidth needs change throughout the day or week, the steps below provide the process to set that scheduled bandwidth as needed

RESOLUTION

TASKS

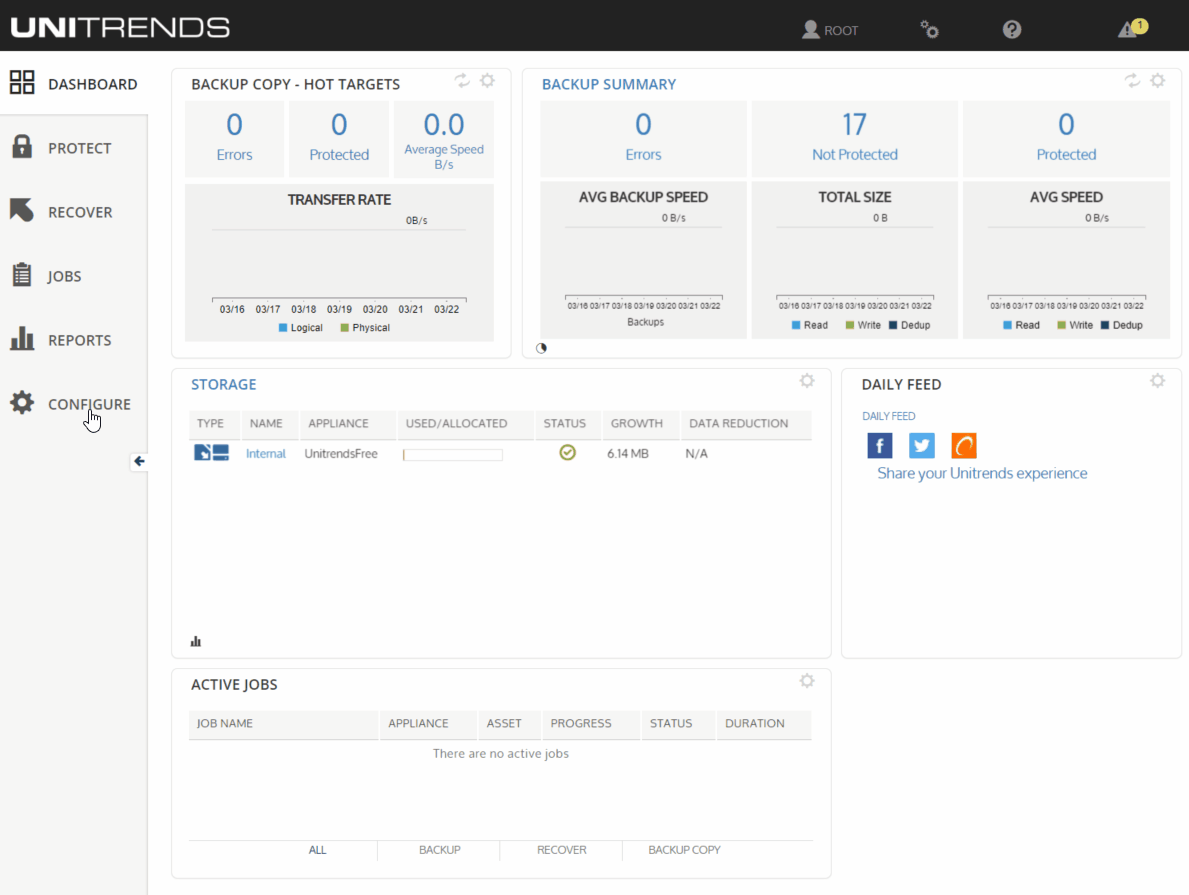

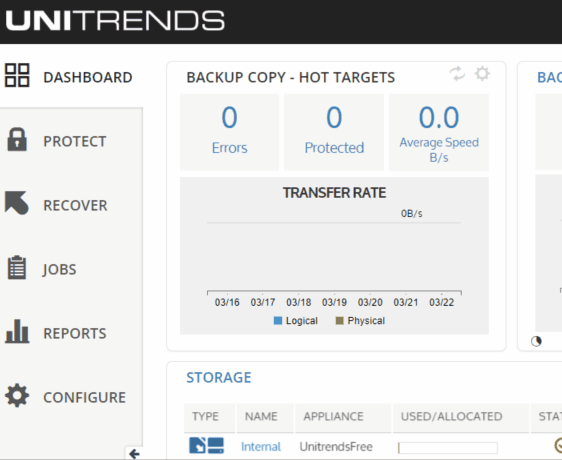

1. Navigate to Configure > Appliances

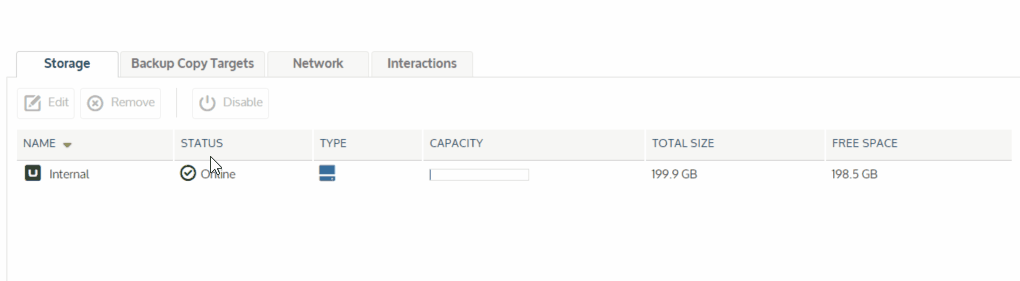

2. Navigate to the sub-tab "Backup Copy Targets" and select "Configure Bandwidth"

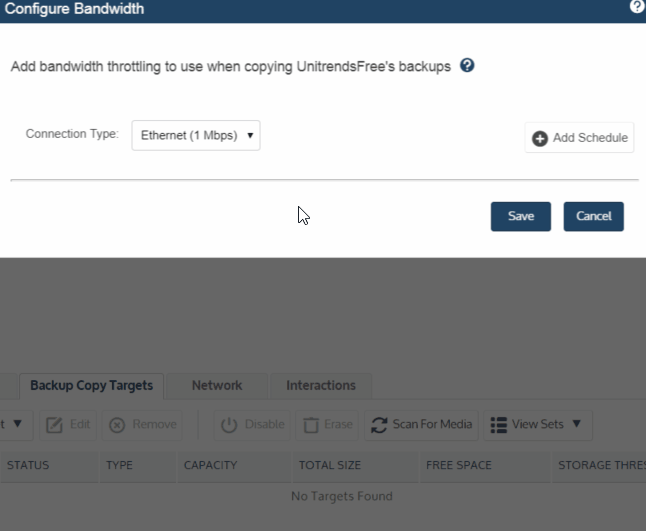

3. Set a connection type and click "Add Schedule," select the throttle amount (percentage of bandwidth that can be used at that time), select the days this will apply, and set a range of hours which this will apply then click Save.
